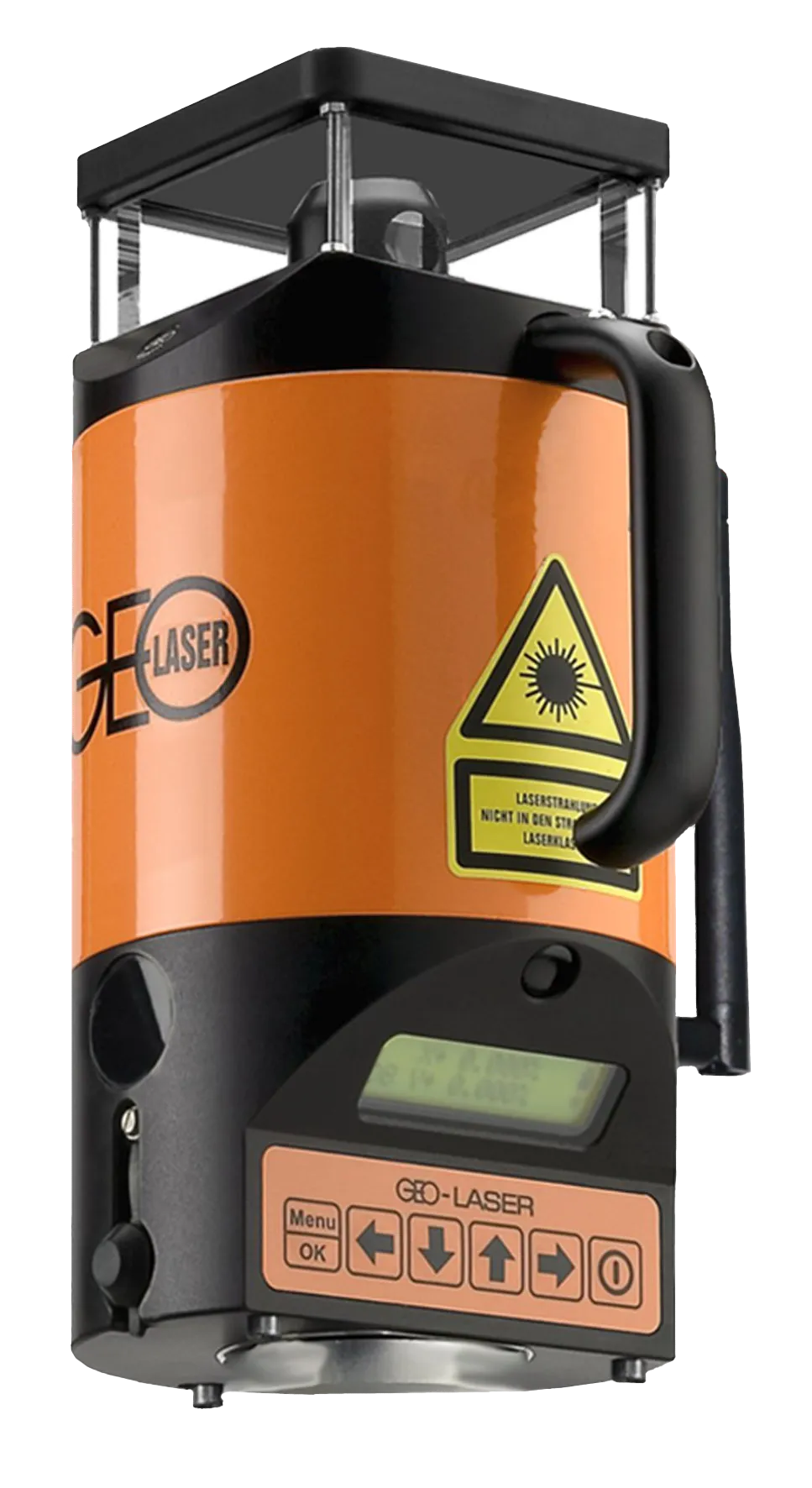

GEO-Laser RL-79L Fully Automatic Rotating Laser with 1km range
PRODUCT OVERVIEW

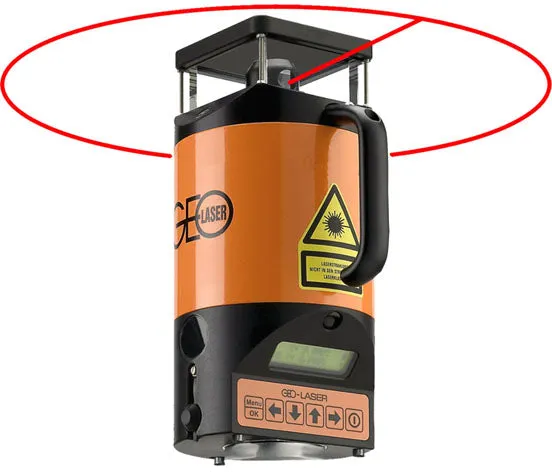

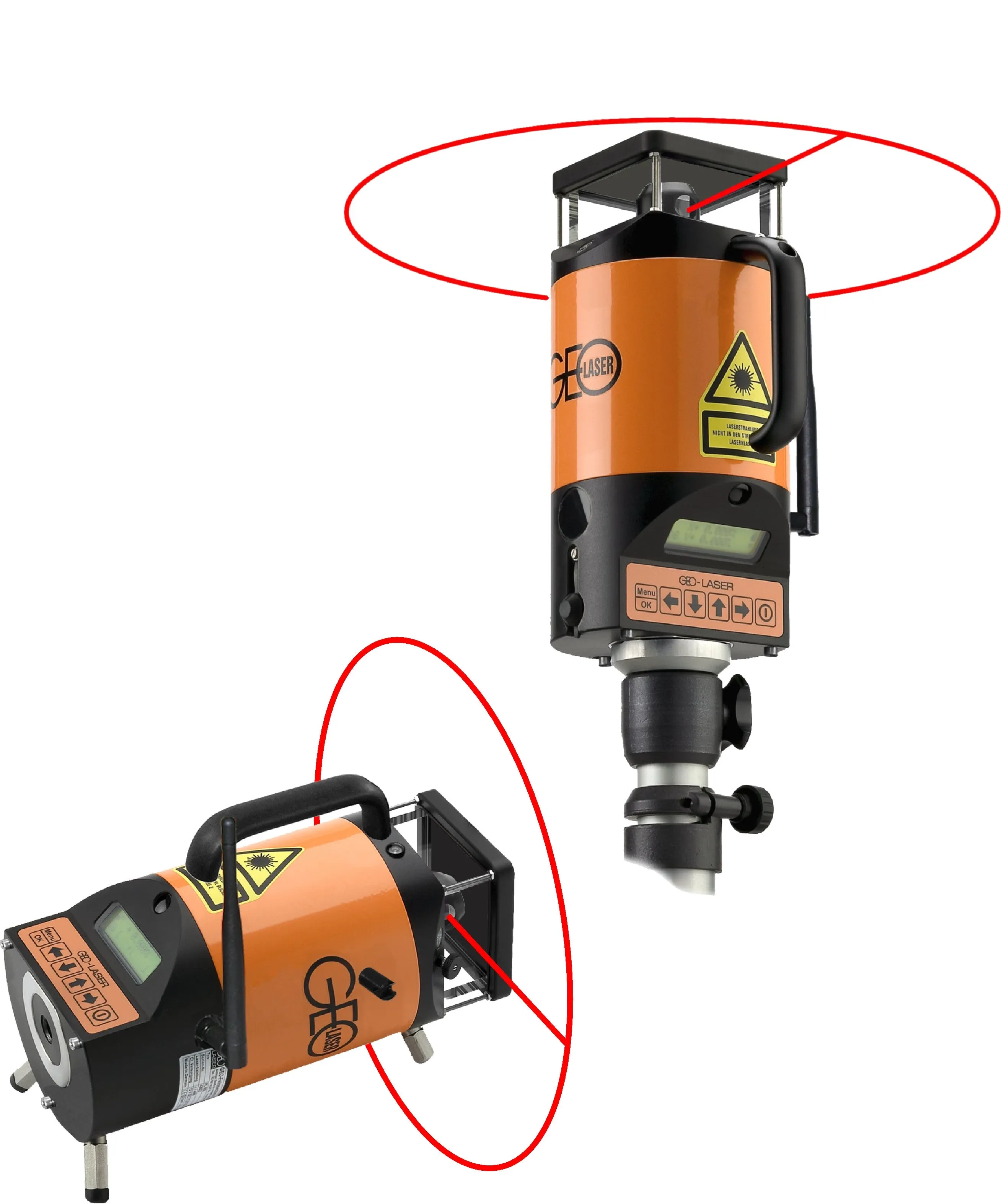

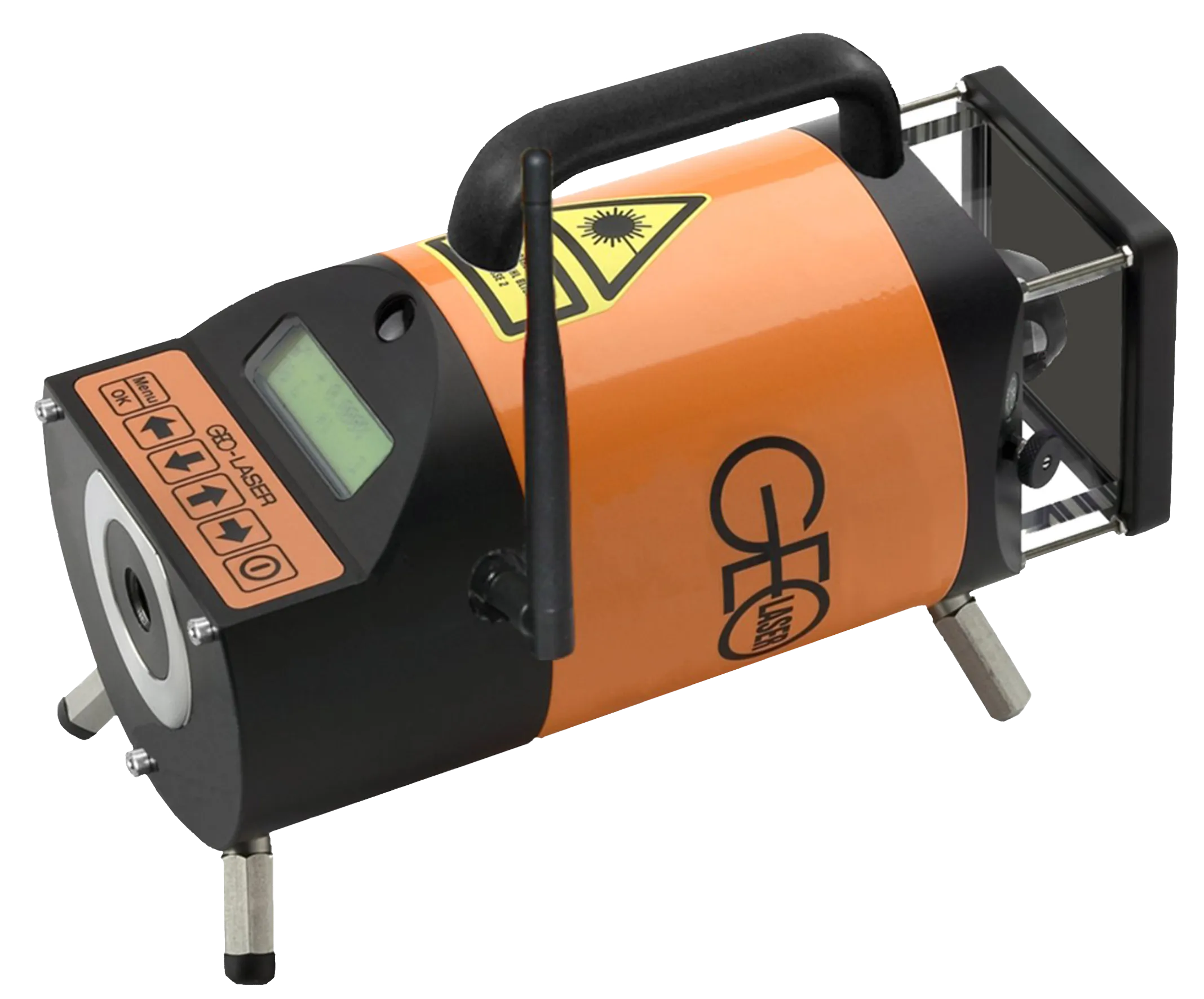

The automatic rotary laser, type RL-78L/-79L, is an all-around laser for horizontal and vertical use capable of electronic self-levelling over 3 axes. It emits a stationary or rotating laser beam, which turns into a light plane.
FEATURES
-
Fully automatic
Automatic levelling and cut-out in case of low battery or jerky movements. -
Special laser beam quality
Diode laser with visible laser beam, high-powered lens, high life expectancy and low power consumption. -
Robust metal housing
Plastic-coated, swept and filled with nitrogen, 100 % watertight. -
Automatic fixing of the laser light plane
By pressing a button automatic search and fixing of the laser light plane of the Y axis. The function is as simple as it is ingenious: The rotating laser beam is received by the locking receiver FE-53 and then automatically directed to the position fixed before. Deviations are detected and corrected immediately. Accuracy /- 1 mm/100 m. -
Automatic function can be switched off
Therefore inclination adjustment by points of reference is possible. -
Increased safety
Control indicators with blinking warning system for levelling, operating status and low battery. -
Lithium ion rechargeable battery
Operation time to 28 hours with one charge. Rechargeable in max. 5 hours without having to take out the battery. -
Manual rotor adjustment
Easy operation for exact positioning of the laser beam, rotor fixing and plumbing down with bubble level in rotor head. -
Checking and adjustment
Simple, fast and accurate! In conjunction with the LE-72, the automatic adjustment of the horizontal light plane is comfortably possible. This offers more security and increases accuracy. -
Reliable system accessories
for the best possible operation. -
Examples for use
Track surveying/laying, facade construction, shelf mounting, plant construction, planting machine control, sheet pile ramming, shuttering, height transfer, lifting of buildings, road level.
Quality Guarantee
Our lasers are the result of decades of experience in the research, development, and production of construction lasers. The design, the materials used, as well as our rigorous quality assurance process are guarantors of high functionality and a long service life. All our devices are designed and manufactured exclusively in Germany and are renowned worldwide for their perfection in terms of handling, precision, robustness, and quality.
SPECIFICATIONS
| Laser class | 3R /< 5 mW |
|---|---|
| Laser | Diode visible red 658 nm |
| Laser range | to 400 m |
| Beam diameter at laser | at laser 13 mm |
| Self-levelling range | ± 5 % |
| Permissible deviation | ± 5 mm/100 m |
| Operating time | up to 28 hours |
| External power supply | 11 V DC to 14 V DC with cable 0117.02 |
| Undervoltage cut-out | yes |
| Waterproof | to 3.5 m |
| Temperature range | - 10° C to 50° C |
| Weight | 3,4 kg |
| Guarantee | 24 month |
| Rotor speed | adjustable: 0, 100, 200, 300, 600, 800 RPM |
| Automatic function | horizontal and vertical |
| Automatic function can be switched off | yes, either one or both axes |
| Adjustment | possible in the field without having to open the device |
| Locking automatic laser light plane | up to 500 m with receiver FE-53 |
